Performs Fast Also When Folding Tiny for Transport

With the Scorpion fs 26, HP Velotechnik presented its first full-suspension speed trike with a smooth-running 26-inch rear wheel, that can be folded flat for transportation without the use of tools.

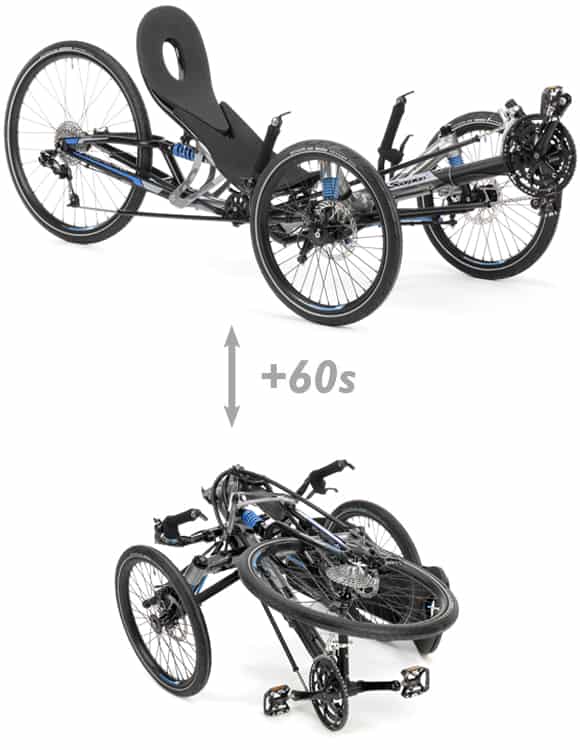

It only takes a minute for you to fold up your Scorpion fs 26 into a space-saving package with dimensions of 123 × 83 × 62 cm (49 x 33 x 25″). If you remove the wheels as well, the dimensions reduce even further to a compact 93 × 74 × 54 cm (37 x 29 x 22″). Even with the optional luggage rack attached, the Scorpion fs 26 can still be folded up without removing the wheels. And the chain? The chain rotates around its axis and otherwise reliably remains where it should be, guided by the flexible chain guard tubes.

The best part: When you unfold the trike, HP Velotechnik’s unique, self-locking folding hinge enables you to turn your excited anticipation into pure riding pleasure quickly!

Accessories

Optional Features

Do you have your own ideas of your ideal trike? A whole range of reliable accessories and components is available for your recumbent trike, all of which have been specially developed to excel in everyday use.

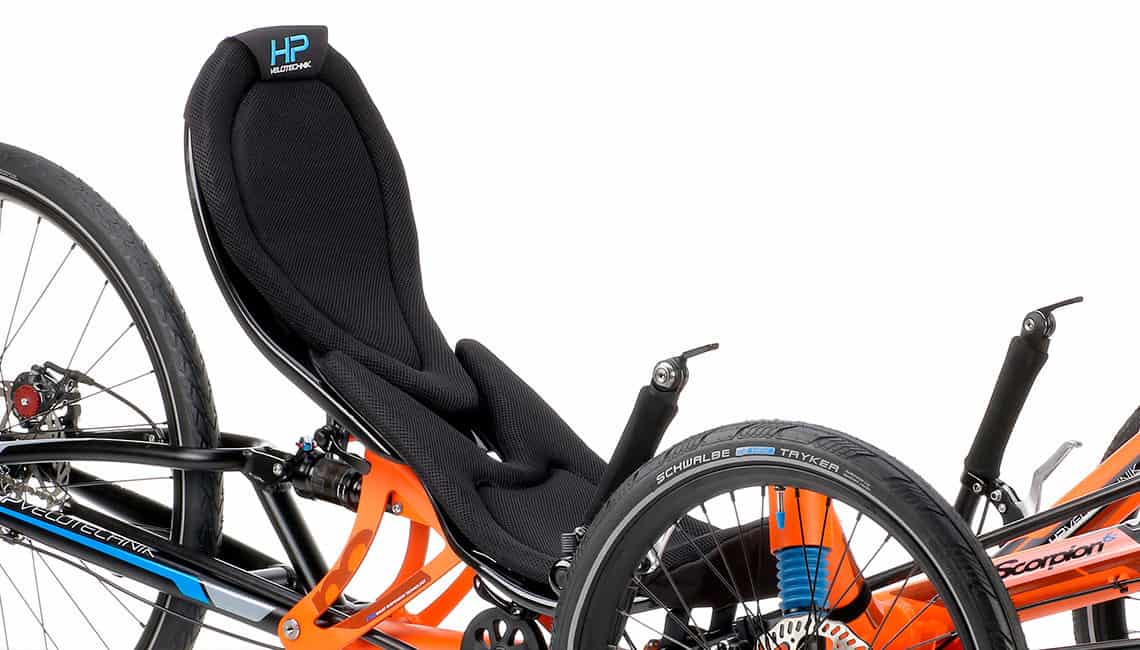

BodyLink-Seat

The HP Velotechnik seat systems provide an exemplary ergonomic connection at the key interface between the rider and the trike. With the adjustable BodyLink hard shell seat, the lower seat shell offers excellent side support, while the upper seat back gives enough freedom for you to lean dynamically into the curve when cornering. Waterproof seat pad cushion made of EVA foam or breathable Airflow seat cushion (multi-layer system).

SeatWings

The SeatWings mounted on the lower part of the BodyLink seat will give your body even more support when cornering dynamically. If you want your keys, spare tubes or your wallet while riding, the attachable MicroBag for the BodyLink seat will be a handy accessory. The MicroBag is attached with velcro straps and can be taken off to double as a convenient hip bag. (Note: use limited with the Scorpion fs 26).

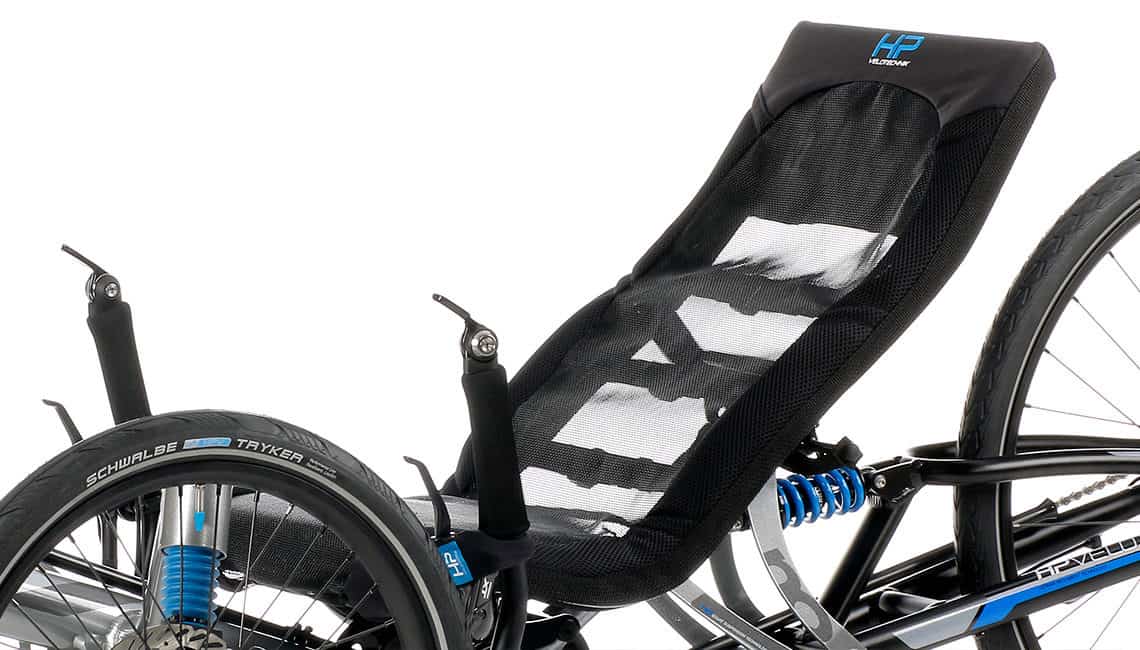

ErgoMesh-Seat

The airy ErgoMesh seat is available in several widths and heights. It has anatomically-shaped side cushioning for extra support when cornering and a practical zipper pocket in the backrest. Safety plus: Reflective strips on the seat sides. Both seat systems fit the same frame mounts and are thus interchangeable. They can also be removed entirely in 15 seconds a practical feature when it is raining, or you want to put your recumbent trike into your car. The ErgoMeshseat gives you a 3 cm higher sitting position than the BodyLink seat. A higher seating position facilitates boarding and disembarking and improves the overview in traffic, but reduces the tilt stability when cornering at higher speed.

Rear Rack

Fancy luggage transport even on rough routes? No problem for your Scorpion. We can install the sturdy rear rack that we developed especially for the Scorpion fs 26 series – and your luggage will be safe and fully suspended on your rides. This enables agile driving dynamics and helps to protect your equipment. The stable rack (14 mm tube) for 2 panniers weighing up to 25 kg (55 lbs) in total has been optimized to withstand the high lateral forces to which trikes are subjected. It comes with a secondary, lowered level to hang your panniers with a low center of gravity. Low sidebars provide secure support for bags. With the Top load attachment you can extend the rack with a platform for light luggage.

Parking Brake

We can install a V-brake on the rear wheel. It is operated by a thumb lever at the handlebar.

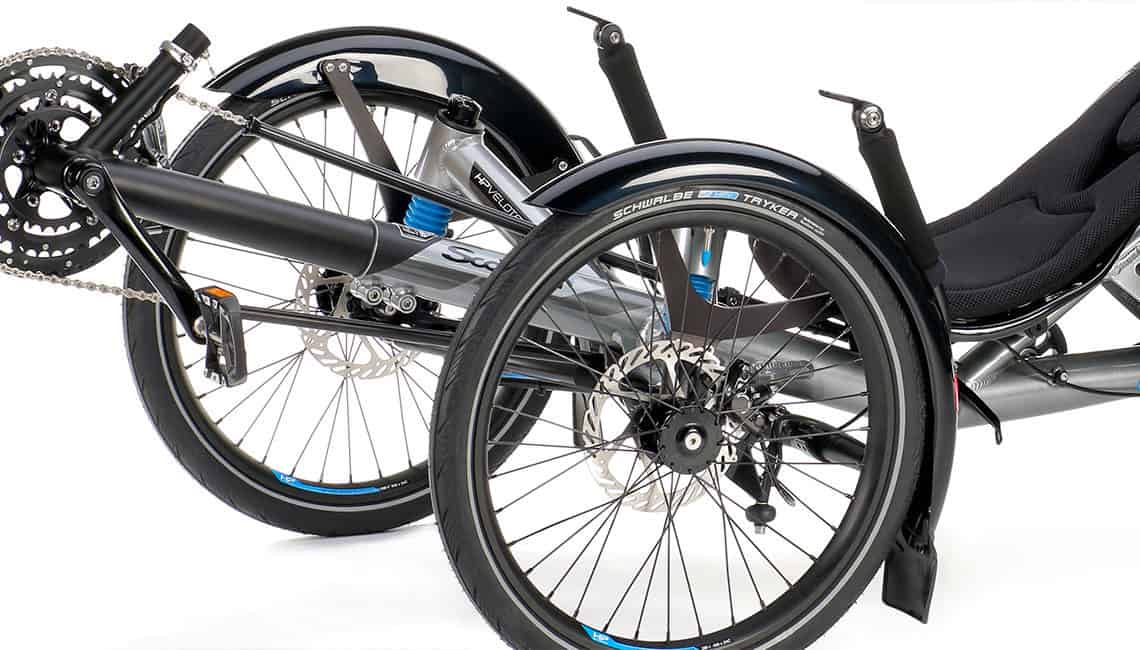

Fenders / Mudguards

Functional fenders: The HP Velotechnik trike fenders offer excellent rider protection against spray from the rear and in particular, from the side. HP Velotechnik enlarged the inside facing part to improve the spray protection to the driver, especially when cornering. Elegant mounting hardware located on the inside of the fender with height adjustment. The rounded shape of the fenders with 60 mm / 2.36″ width allows the installation of large-volume, comfortable tires up to 50 mm / 2″ width.

Front Boom Quick Adjust

The optional quick frame adjustment with quick-release levers can be used to adapt the bike to different leg lengths quickly. By pushing in the boom tube, you can also make your Scorpion fs 26 even more compact for transport.

Electric Power-Assist

Scorpion Goes E-Trike. Like all models from HP Velotechnik, the Scorpion fs 26 can also be equipped with a powerful and efficient STEPS electric assist system from Shimano. Through the electric motor support of up to 20 mph those steep climbs become less daunting. The built-in aerodynamic advantage of your recumbent trike can also be exploited electrically: less drag means more range. People with special needs, veterans or injured people can now experience exciting outdoor activities from the comfortable seat of HP Velotechnik’s stable trike and get some extra support from the powerful motor whenever they want to! For extra long trips, the second battery option from HP Velotechnik instantly doubles the maximum range.
