Scorpion fs 26 Enduro: Automotive Chassis Suspension for an Impressive Off-Road Experience

Scorpion fs 26 Enduro Features

Comfortable Off-Road and in Transport

With the Scorpion fs 26, HP Velotechnik presented its first full-suspension speed trike with a smooth-running 26-inch rear wheel, that can be folded flat for transport without the use of tools. With the Scorpion fs 26 Enduro, the expert designers at trike specialist HP Velotechnik added another dimension: superb ride comfort inspired by automotive engineering to cope with all the obstacles that off-road riding can offer.

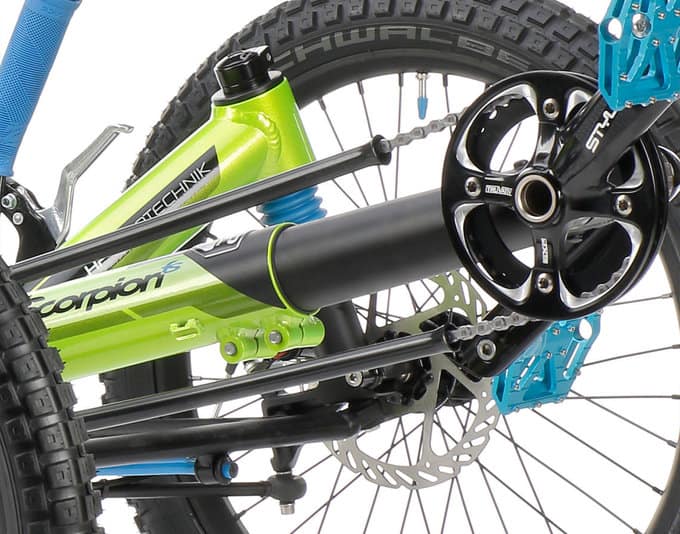

All the outstanding features of the Scorpion series can be found on the Scorpion fs 26 Enduro as well: in just a few simple steps, it only takes a minute for you to fold up your Scorpion fs 26 Enduro into a space-saving package with dimensions of 123 × 83 × 62 cm (49 x 33 x 25″). If you remove the wheels as well, the dimensions reduce even further to a compact 93 × 74 × 54 cm (37 x 29 x 22″). Even with the optional luggage rack attached, the Scorpion fs 26 Enduro can still be folded up without removing the wheels. And the chain? The chain rotates around its axis and otherwise reliably remains where it should be, guided by the flexible chain guard tubes.

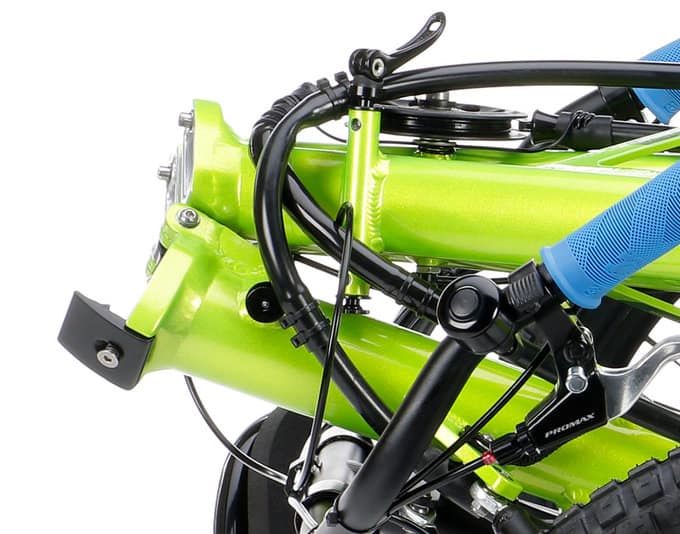

The best part: When you unfold the trike, HP Velotechnik’s unique, self-locking folding hinge enables you to turn your excited anticipation into pure riding pleasure quickly!


Optional Features

Do you have your own ideas of your ideal trike? A whole range of reliable accessories and components is available for your recumbent trike, all of which have been specially developed to excel in everyday use.

The Details at a Glance

Your Scorpion fs 26 Enduro has these technical refinements on board as standard.

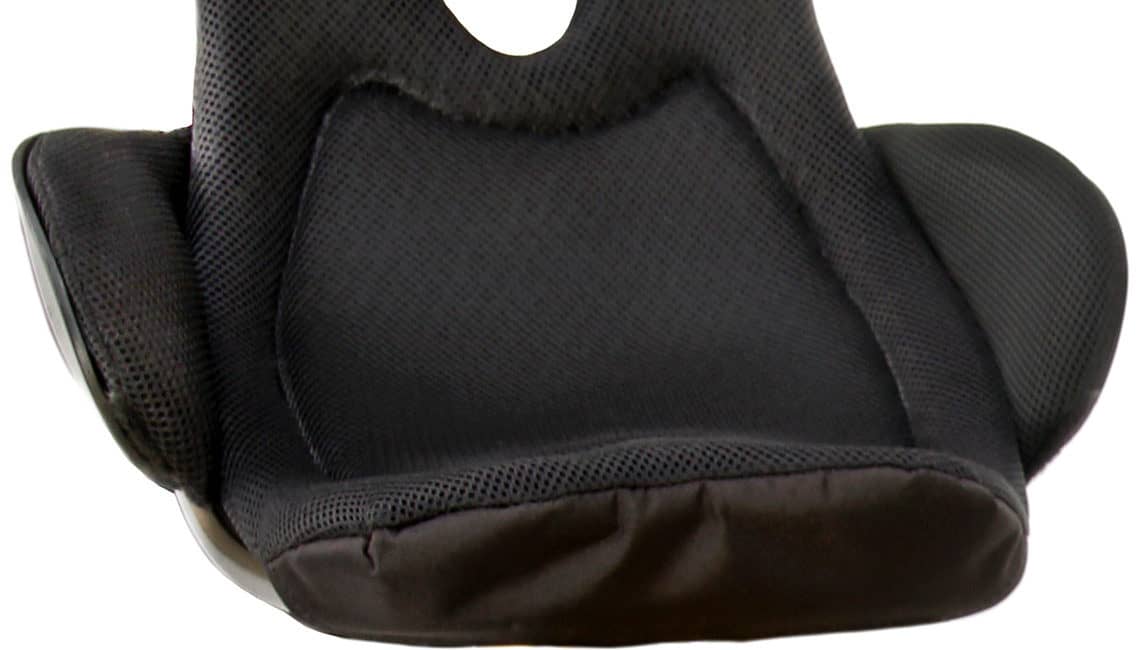

Seat height BodyLink 12″ (29 cm)

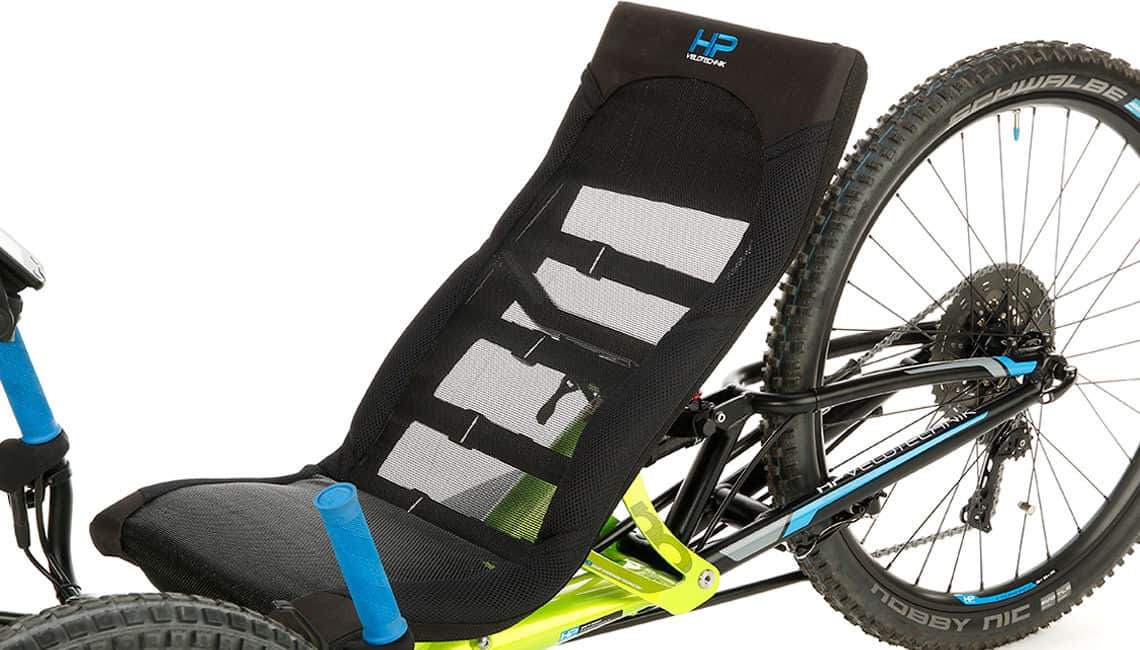

Seat height ErgoMesh 13″ (32 cm)
Seat angle adjust 41 – 49 degrees
Wheel size (front wheel) 20″ (ISO 406)
Wheel size (rear wheel) 26″ (ISO 559)
Max. tire width 5 cm (2″)
Bottom bracket height 16″ – 18″ (40 – 45 cm)
Ground clearance 5″ (12 cm)
Wheel base 51″ (128 cm)
Folded size 49 x 33 x 25″ (123 × 83 × 62 cm)
Track width 31″ (78 cm)
Width 33″ (83 cm)
Length 74″ – 91″ (187 – 231 cm)
Turning circle 18′ (5.51 m)
Weight (from) 45lbs (20.5kg)
Suspension travel front 2.4″ (6 cm) / rear 3.1″ (8 cm)
Payload max Off road: 242lbs (110kg) On Road: max 309 lbs
Rider height 5’4″– 6’7″ (1.62 – 2.00 m)
